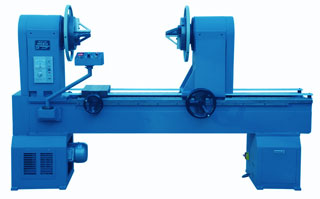

Used in glass and quartz the hot working, used for glass products of the sealing, shaping, etc.
Straight guide design, double chain synchronous drive, and especially the design of the six transmission shaft adjustable sleeve, solves the problem that the moment is not synchronous. Make the lathe concentric synchronous operation to highest accuracy the glass processing needed.
Straight guide design make the machine head and guide rail reduces abrasion, prolongs the service life.
This lathe increased the height of the center than traditional lathe, and extending the processing range between chucks, HT250 casting overall, increased the overall weight, so that the equipment is in operation to achieve the best stability, improve product quality.
Guide rail type: | HGW20CA |
Distance of spindle center to guide rail: | 450mm |
Distance between spindle chuck plane: | 1250mm |
Spindle aperture: | 122mm |
Three claws chuck workable diameter: | 10-250mm |
Parallelism between axes of lathe head and guide rail: | 0.04 |
Unequal height between principal axis of the two lathe: | 0.05 |
Moving distance of the left and right lathe head: | +0.04 |
Rotate speed of principal axis: | 24-240r/min |
Power of main motor: | 380V 50HZ 0.75KW |
Lathe size: | 2400×470×1550mm |
Weight: | 1400Kg |
Lathe length: | 2400mm |
Principal axis and workbench: | 500mm |
