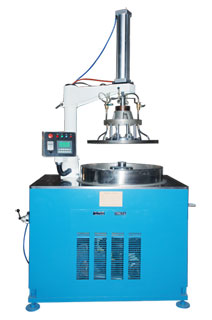

SyM640A，double surface lapping machine，also named polishing machine, is widely used on polishing process of two sides in machinery, electronic industry and others. Used for product degree of parallelism, flatness, dimensional tolerance controled whithin 0.003mm. surface roughness under Ra0.2um. Especially for high precision, fragile thin part, can working excellent quality in producing.
At present, this series models, have been widely used in silicon, germanium, crystal, glass, ceramics, sapphire, gallium arsenide, ferrite, such as lithium niobate non-metallic sheet body, and the valve plate, valve plate, a friction plate, rigid seal, piston rings and other metal parts
Processing, and achieved excellent results.

研磨盤尺寸		Φ640×Φ235×30mm
游星輪主要參數	英 制	Z108 DP=12 α=20°
	公 制	Z114 M2 α=20°
游星輪數量		5
升降部位		下研盤
升降動力		氣動
研磨盤轉速（r/min）		0~60
Power of main motor（kw）		4kW
砂泵電機（kw）		0.125kW
電源		380V 3Φ 50HZ
機器尺寸（mm）		1350×960×2450
機器Weight（kg）		1925kg
左右主軸跳動		±0.03mm
加 工 范 圍 及 精	最大工件直徑	200mm
	最小工件厚度	0.15mm
	最大工件厚度	20mm
	平行度、平面度	≤0.003mm
	尺寸精度	0.003mm
	表面粗糙度	≤Ra0.15um
